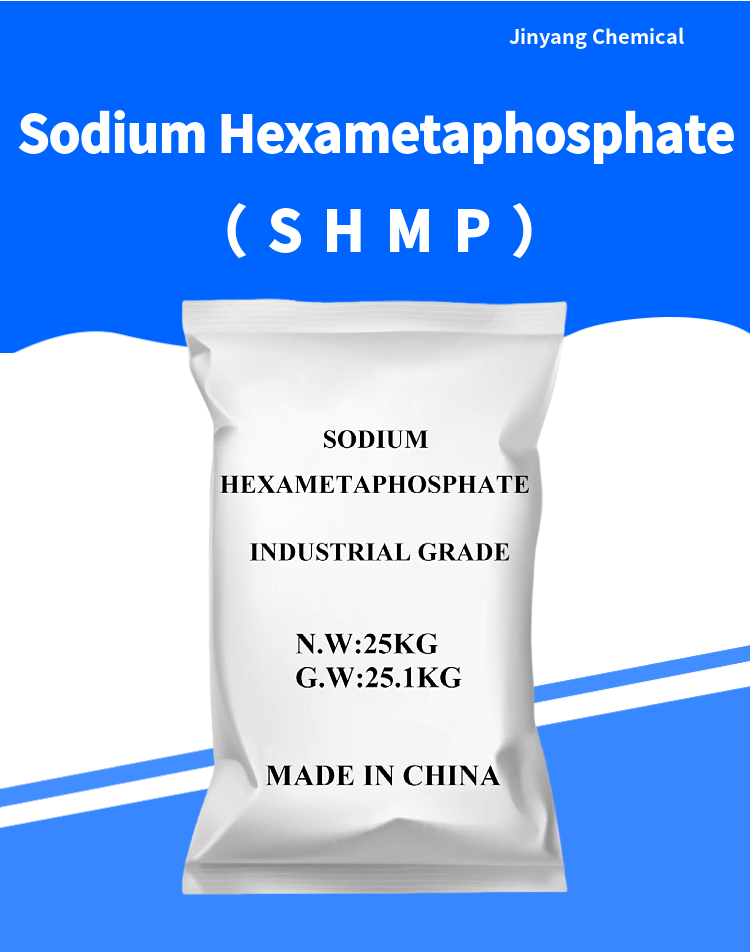

Introduction to Sodium Hexametaphosphate (SHMP)

Sodium Hexametaphosphate (SHMP) is an inorganic compound with the formula (NaPO3)6. It is a type of polyphosphate composed of repeating sodium and phosphate units, where multiple phosphate molecules are linked together. It exists as a white crystalline powder or a clear, glassy solid. SHMP is highly soluble in water, forming a solution with a wide range of applications due to its unique chemical properties.

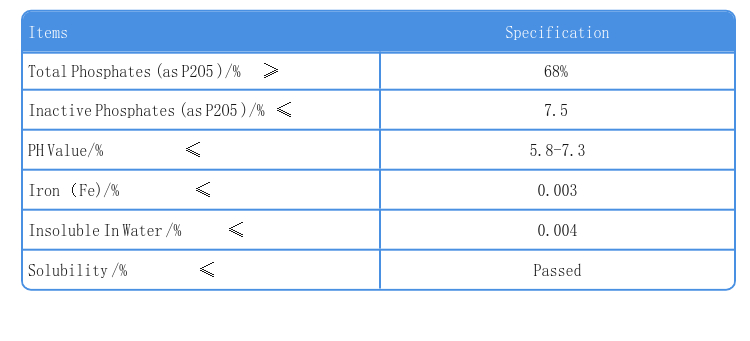

Key Properties:

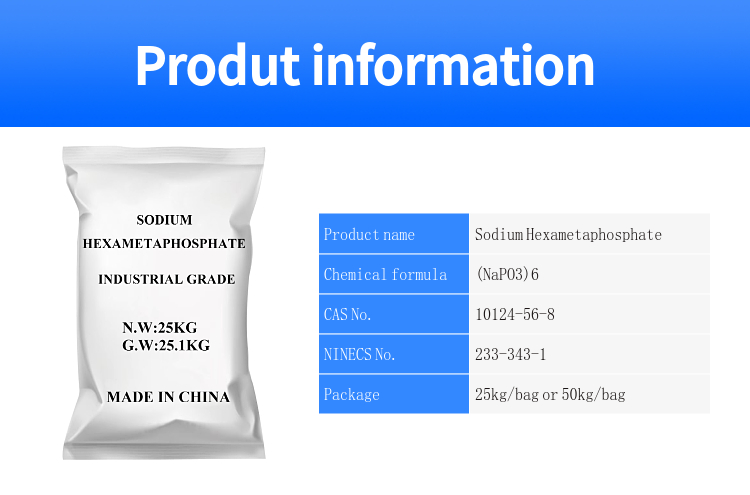

- Chemical Formula: (NaPO3)6

- Molecular Weight: 611.77 g/mol

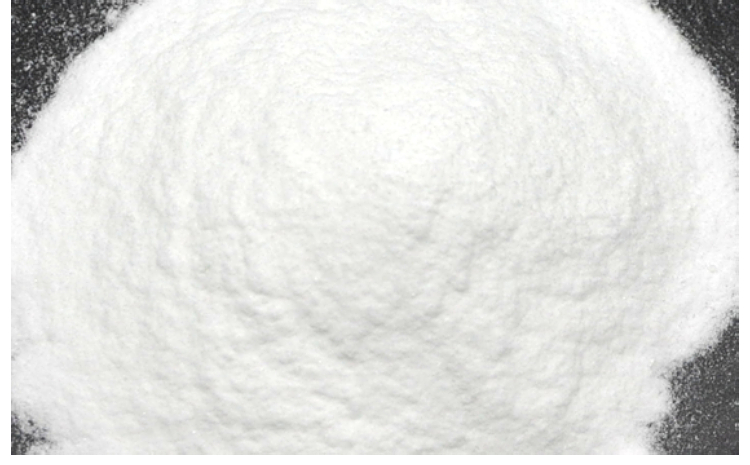

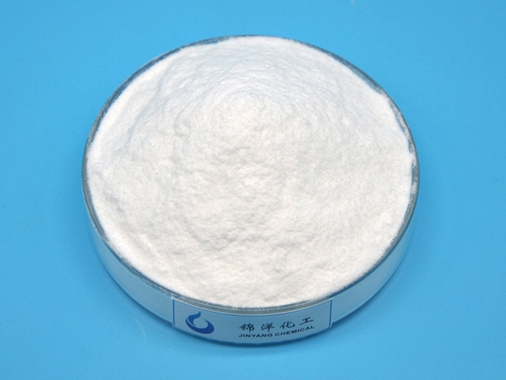

- Appearance: White, odorless powder or colorless crystals

- Solubility: Highly soluble in water, forming a viscous solution

- pH: It tends to have an alkaline pH in solution (around 6 to 8).

Production:

SHMP is produced by heating monosodium orthophosphate to a high temperature (~300°C), which leads to polymerization and formation of the metaphosphate chain.

Applications:

SHMP is used in a wide variety of industries due to its ability to sequester metal ions, disperse particles, and modify water chemistry.

1. Water Treatment:

SHMP is commonly used to soften water by sequestering calcium, magnesium, and other multivalent cations. This prevents the formation of insoluble salts that can cause scaling and fouling in pipes and equipment.

2. Food Industry:

It is used as an emulsifier, thickener, and sequestrant in various food products. For example, it is found in processed cheese, meat products, and seafood to retain moisture and improve texture. It also helps prevent spoilage by inhibiting metal ion reactions that can cause oxidation.

3. Detergents and Cleaning Products:

SHMP is added to household and industrial detergents because of its excellent ability to prevent scale buildup and enhance cleaning power by softening water. It helps disperse dirt and grease by complexing with cations that might interfere with cleaning efficiency.

4. Ceramics and Paints:

In ceramics, it is used as a deflocculant, preventing particles from clumping together, which improves the workability of clay. In paints and coatings, it can act as a dispersant, helping pigments remain evenly distributed.

5. Cosmetics and Personal Care:

It is used in formulations to stabilize products, prevent the buildup of scales, and improve texture in personal care products like toothpaste and creams.

6. Industrial Applications:

In oil drilling, SHMP is used as a dispersing agent in drilling muds, where it helps control the viscosity and prevents the aggregation of particles.

Health and Safety:

While SHMP is generally regarded as safe (GRAS) by regulatory bodies like the FDA for use in food, it can cause irritation to the skin and eyes upon contact in its pure form. Inhalation of SHMP dust should be avoided. Prolonged exposure to high concentrations in the environment may lead to the eutrophication of water bodies.

Environmental Impact:

In water bodies, SHMP can contribute to eutrophication by introducing phosphates, which act as nutrients for algae and can lead to algal blooms. Therefore, its use in industrial applications must be carefully managed to avoid environmental pollution.

Conclusion:

Sodium hexametaphosphate is a versatile chemical with a wide range of applications in water treatment, food processing, detergents, and industrial uses. Its ability to interact with metal ions and disperse particles makes it indispensable in many industries, though its environmental impact requires mindful management.

Classification of Sodium Hexametaphosphate:

Sodium Hexametaphosphate (SHMP) can be classified in various ways depending on its chemical structure, properties, and industrial applications. Here’s an outline of its classification:

 1. Chemical Classification:

Inorganic Compound: SHMP is classified as an inorganic chemical because it does not contain carbon-hydrogen (C-H) bonds.

Polyphosphate: SHMP is a member of the polyphosphate family, meaning it consists of multiple phosphate units linked by oxygen atoms.

Phosphate Compound: Specifically, SHMP is a sodium salt of a phosphoric acid derivative.

Metaphosphate: It falls under the metaphosphate category because of its specific ring structure, which distinguishes it from orthophosphates and pyrophosphates.

 2. Structural Classification:

Polymeric Compound: SHMP is a polymer, composed of repeating phosphate units linked together. It has the general formula (NaPO3)6, indicating six phosphate groups in the polymer chain.

Cyclic Structure: It often forms a cyclic hexamer (a six-membered ring), although it can exist in both cyclic and linear forms depending on how the metaphosphate chains are arranged.

 3. Physical Classification:

Solid: SHMP is generally classified as a solid, typically found in the form of a white, crystalline powder or clear glassy solid.

Water-Soluble: It is classified as a highly water-soluble compound, which makes it suitable for use in aqueous applications.

 4. Functional Classification:

Sequestrant: SHMP is used as a sequestrant, which means it can bind and hold onto metal ions (e.g., calcium, magnesium) and prevent them from reacting with other substances.

Dispersing Agent: In various industrial processes, SHMP functions as a dispersant, helping to break up and stabilize particles in suspension (e.g., in ceramics or paints).

Emulsifier and Stabilizer: In food products, SHMP is classified as an emulsifier and stabilizer, helping to maintain texture and prevent the separation of ingredients.

 5. Industrial Classification:

Food Additive (E452i): SHMP is approved as a food additive under the European Union (EU) food additive code E452i, where it is used for its ability to retain moisture, improve texture, and prevent spoilage.

Water Treatment Chemical: It is widely used in water treatment as a scale inhibitor and water softener.

Detergent Additive: In cleaning agents and detergents, SHMP is classified as a builder, helping to soften water and improve cleaning efficiency.

 6. Regulatory Classification:

Generally Recognized As Safe (GRAS): SHMP is classified as "Generally Recognized As Safe" by the U.S. Food and Drug Administration (FDA) when used within prescribed limits in food products.

Hazardous Substance: According to safety and environmental regulations (e.g., OSHA, REACH), SHMP is classified as a chemical that may cause skin or eye irritation and should be handled with appropriate protective measures in its pure form.

 7. Environmental Classification:

Nutrient Source: SHMP is considered a nutrient source for phosphorus in environmental systems. Excessive amounts can lead to eutrophication, a condition in which water bodies become nutrient-rich, leading to algal blooms and environmental imbalances.

In summary, SHMP can be classified based on its chemical composition, function, physical properties, industrial use, and regulatory status. It is a key polyphosphate compound with a wide array of applications in multiple industries.

Sodium Hexametaphosphate (SHMP) is a versatile compound with a wide range of applications across various industries due to its ability to sequester metal ions, disperse particles, and modify water properties. Below are the key application areas of SHMP:

 1. Water Treatment:

Water Softening: SHMP is used to sequester calcium, magnesium, and other multivalent metal ions in water, preventing the formation of scale in pipes and water systems.

Corrosion Inhibition: It can help prevent corrosion in water distribution systems by forming protective layers on metal surfaces.

Scale Prevention: In industrial cooling systems, SHMP helps prevent the buildup of mineral scale by binding with calcium and magnesium ions.

 2. Food Industry (as E452i):

Moisture Retention in Meat and Seafood: SHMP is used in the processing of meats, poultry, and seafood to retain moisture and improve texture. It prevents the loss of water during cooking and processing, leading to juicier products.

Processed Cheese: In processed cheese, SHMP acts as an emulsifier, helping to stabilize the product and prevent fat separation.

Beverage Production: SHMP is used in beverage production, especially in fruit juices, to prevent the formation of cloudiness or turbidity by binding with metal ions.

Dairy Products: In dairy products like condensed milk and powdered milk, SHMP helps improve texture and shelf life.

Stabilizing and Clarifying Agent: It is used to stabilize canned or bottled beverages and prevent the oxidation of metal ions in food products.

 3. Detergents and Cleaning Products:

Water Softening in Detergents: SHMP is an important component in laundry and dishwashing detergents because it softens water, improving the efficiency of cleaning by preventing interference from hard water minerals.

Dispersing Agent: In detergents, it helps to suspend dirt particles and prevent them from redepositing onto surfaces during washing.

Scale and Residue Prevention: SHMP is used to prevent the formation of scale and residues in cleaning formulations, especially in industrial settings like dishwashers and laundries.

 4. Ceramics and Paints:

Deflocculant in Ceramics: SHMP is used in the ceramic industry as a deflocculant, where it reduces the viscosity of clay slurries and improves their flow characteristics, making the clay easier to shape and mold.

Dispersing Agent in Paints: In paints, SHMP helps to disperse pigments evenly, preventing the clumping of particles and ensuring smooth, uniform coatings.

 5. Oil and Gas Industry:

Drilling Fluids: In oil drilling, SHMP is used in drilling muds as a dispersant. It helps to maintain the correct viscosity of the drilling fluid, preventing the aggregation of particles and ensuring smooth drilling operations.

 6. Cosmetics and Personal Care Products:

Toothpaste: SHMP is often included in toothpaste formulations as a tartar control agent, helping to prevent the buildup of calcium deposits on teeth (plaque and tartar).

Shampoos and Conditioners: It is used in some hair care products to stabilize formulations and prevent the precipitation of metal ions from hard water, which can leave residues on hair.

 7. Mining and Mineral Processing:

Flotation Agent: In mineral processing, SHMP is used as a dispersant in flotation processes to help separate minerals by preventing particle clumping, improving recovery rates, and enhancing product purity.

Dust Suppression: It is also used in mining to suppress dust by reducing the cohesiveness of particles, thus making them easier to control.

 8. Pharmaceutical Industry:

Tablet Binding and Stabilization: SHMP is sometimes used in pharmaceutical formulations to stabilize tablets and enhance their dissolution rates.

Drug Delivery: It is involved in the formulation of some medical applications, where it acts as a dispersing agent or buffer.

 9. Textile Industry:

Fabric Treatment: SHMP is used to soften water during fabric processing and prevent the deposition of calcium and magnesium ions, which can interfere with dye uptake and fabric texture.

Dye Fixation: It helps improve the colorfastness of dyes on fabrics by preventing metal ion interference during the dyeing process.

 10. Paper and Pulp Industry:

Pulp Bleaching: In the paper industry, SHMP is used to bleach and soften pulp. It also helps to improve the brightness and quality of paper.

Dispersing Agent: SHMP helps disperse and stabilize fillers and pigments in paper products, ensuring even distribution of materials and enhancing the overall appearance and texture.

 11. Environmental Applications:

Soil Stabilization: SHMP is sometimes used in environmental engineering projects to stabilize soil and prevent erosion by modifying the soil’s properties.

Wastewater Treatment: It is used in the treatment of industrial wastewater to bind metal ions and prevent the formation of insoluble precipitates, thereby aiding in the removal of contaminants.

 12. Agriculture:

Fertilizer Additive: SHMP is sometimes added to fertilizers to improve nutrient availability and prevent nutrient lock-up in soil by chelating metal ions like calcium and magnesium.

 13. Laboratory Applications:

Analytical Chemistry: SHMP is used in laboratories as a reagent for water analysis, especially in tests for calcium and magnesium ions, as it can sequester these ions in solution.

 Conclusion:

Sodium Hexametaphosphate is a key component in a variety of industries, including food processing, water treatment, ceramics, detergents, cosmetics, and oil drilling, due to its ability to sequester metal ions, soften water, disperse particles, and prevent scale formation. Its multifunctional properties make it an essential chemical for many industrial and commercial applications.

Using Sodium Hexametaphosphate (SHMP) properly depends on the specific application. Below are guidelines on how to use SHMP across various industries and applications:

 1. Water Treatment:

Dosage: SHMP is typically added to water systems at concentrations ranging from 1 to 10 mg/L, depending on the hardness of the water and the level of treatment required.

Method:

  Dissolve SHMP in water before adding it to the system. It can be dosed into cooling towers, boilers, or municipal water treatment plants using metering pumps.

  For household applications like water softeners, SHMP can be added directly to the water supply system.

Purpose: Helps prevent scale buildup by sequestering calcium and magnesium ions, and inhibits corrosion in pipes.

 2. Food Industry (as a food additive - E452i):

Dosage: In food products, SHMP is used at concentrations regulated by food safety authorities (e.g., FDA, EFSA). Typically, it is added at concentrations between 0.3% to 0.5% by weight in processed foods.

Method:

  Processed Meat and Seafood: SHMP is added to marinades or brines to help retain moisture and improve texture. Mix it with water or other liquid ingredients before injection or soaking of meat or seafood.

  Cheese: In processed cheese, SHMP is mixed with other ingredients during the emulsification process to ensure smooth consistency and prevent fat separation.

Purpose: Acts as an emulsifier, moisture retainer, and stabilizer in processed food products.

 3. Detergents and Cleaning Products:

Dosage: SHMP is typically used at concentrations between 0.5% and 5% in detergent formulations.

Method:

  In powdered or liquid detergents, SHMP can be added directly to the mixture during the production process.

  For household cleaning, SHMP is often part of the formulation in dishwashing tablets, laundry detergents, or industrial cleaning solutions.

Purpose: Enhances cleaning efficiency by softening water and preventing scale buildup.

 4. Ceramics Industry:

Dosage: SHMP is typically used at 0.2% to 1.0% of the weight of the dry clay in ceramics.

Method:

  Dissolve SHMP in water and mix it with the clay slurry during the preparation of ceramic materials.

  It can be used to reduce the viscosity of the clay and improve its workability.

Purpose: Acts as a deflocculant to disperse particles and improve the flow properties of clay suspensions.

 5. Oil and Gas Industry:

Dosage: In oil drilling, SHMP is typically added at concentrations of 0.1% to 1% to drilling muds.

Method:

  SHMP is dissolved in water and mixed with the drilling mud to improve the dispersion of particles and maintain fluid viscosity.

Purpose: Enhances the performance of drilling mud by preventing clumping of particles and improving lubrication.

 6. Cosmetics and Personal Care:

Dosage: SHMP is used in personal care products (e.g., toothpaste) at concentrations typically between 0.5% and 1%.

Method:

  SHMP is mixed with other ingredients during the formulation of cosmetics or toothpaste. In toothpaste, it helps prevent tartar buildup by chelating calcium ions.

Purpose: Acts as a stabilizer, dispersant, and scale inhibitor, particularly in oral care products.

 7. Pharmaceutical Applications:

Dosage: SHMP concentrations vary depending on the specific formulation, generally in the range of 0.1% to 2%.

Method:

  It is added during the production of tablets or suspensions to stabilize formulations and improve shelf life.

Purpose: Helps to enhance the solubility of active ingredients and prevent the aggregation of particles.

 8. Textile and Paper Industries:

Dosage: In the textile industry, SHMP is used at concentrations ranging from 0.5% to 1.5% of the total weight of the fabric or paper pulp.

Method:

  Dissolve SHMP in water and use it during fabric processing or paper pulp preparation. It can be applied to prevent the deposition of calcium and magnesium ions during the processing of textiles or the production of paper.

Purpose: Softens water, prevents fabric hardening, and enhances the quality of dyes in textiles.

 9. Agriculture:

Dosage: In fertilizers, SHMP is added in small quantities, typically around 0.1% to 0.5%.

Method:

  Mix SHMP into fertilizer formulations or dissolve it in water for foliar sprays to help prevent nutrient lock-up.

Purpose: Acts as a chelating agent to prevent calcium and magnesium from binding essential nutrients.

 10. Laboratory Use:

Dosage: Typically used at milligram levels for water analysis.

Method:

  Dissolve SHMP in water for use in tests and chemical analyses to sequester metal ions and prevent interference with testing results.

Purpose: Acts as a reagent for water hardness testing by chelating metal ions.

 General Guidelines for Using SHMP:

1. Dissolution: SHMP should be dissolved in water or a suitable liquid before being added to formulations or systems. Its high solubility in water ensures efficient dispersion and action.

2. Handling Precautions:

Wear appropriate protective gear, including gloves and goggles, when handling pure SHMP to avoid skin and eye irritation.

Work in a well-ventilated area to avoid inhalation of dust, especially when handling large quantities.

3. Storage:

Store SHMP in a cool, dry place in sealed containers to prevent moisture absorption, which could degrade its effectiveness.

Keep it away from acids and strong oxidizing agents.

By following these guidelines and specific dosages, SHMP can be effectively utilized in a variety of industries, improving performance in everything from water treatment to food processing and industrial applications.
