In various industrial and commercial water systems, scale formation can pose significant challenges. Scale, typically comprised of calcium carbonate, calcium sulfate, and other minerals, can accumulate on surfaces, leading to reduced heat transfer efficiency, increased energy consumption, and potential equipment damage. To address these issues, circulating water scale inhibitors are employed to prevent and control scale buildup.

What is a Circulating Water Scale Inhibitor?

A circulating water scale inhibitor is a chemical substance added to water systems to prevent the formation and accumulation of scale deposits. These inhibitors work by altering the chemical processes that lead to scale formation or by keeping scale-forming minerals suspended in the water so they can be removed before they deposit on surfaces.

How Do Scale Inhibitors Work?

1. Interference with Crystal Formation: Scale inhibitors can prevent minerals in the water from crystallizing and forming solid deposits. They achieve this by either binding with the minerals or altering the conditions under which crystallization occurs.

2. Crystal Modification: Some inhibitors modify the structure of mineral crystals, making them less likely to adhere to surfaces or aggregate into larger, problematic deposits.

3. Suspension of Existing Crystals: Inhibitors can also help keep existing scale particles in suspension, preventing them from settling and forming thicker deposits.

Types of Scale Inhibitors

1. Phosphates: Often used in the past, phosphates bind with calcium and magnesium ions to prevent scale formation. However, due to environmental concerns, their use has been reduced.

2. Polyphosphates: More stable and effective at lower concentrations compared to simple phosphates. They are used in a variety of applications but also face environmental scrutiny.

3. Organic Acids: Such as citric acid and acetic acid, these acids sequester scale-forming minerals and are often used in more eco-friendly formulations.

4. Chelating Agents: Compounds like EDTA (ethylenediaminetetraacetic acid) form complex bonds with scale-forming ions, effectively keeping them in solution.

5. Synthetic Polymers: Custom-designed polymers that interfere with the formation and growth of scale crystals.

Applications

Cooling Towers: To maintain efficient heat exchange and prevent scale buildup on cooling surfaces.

Boilers: To prevent scale on heating surfaces, which can reduce efficiency and cause overheating.

Industrial Processes: Where water is heated or evaporated, and scale formation could impair system performance.

Benefits

1. Improved Efficiency: By preventing scale buildup, scale inhibitors help maintain optimal heat transfer and system performance.

2. Cost Savings: Reduced scale leads to fewer maintenance requirements, longer equipment life, and lower energy costs.

3. System Protection: Inhibitors help avoid damage to equipment and reduce the risk of system failures.

Considerations

Water Chemistry: The effectiveness of a scale inhibitor depends on the specific chemistry of the water and the types of minerals present.

Environmental Impact: Some inhibitors can have adverse environmental effects, so choosing an environmentally friendly option may be important.

System Compatibility: Ensure the chosen inhibitor is compatible with the other chemicals and materials used in the system.

In summary, circulating water scale inhibitors are essential for maintaining the efficiency and longevity of water systems by controlling scale formation. Their proper selection and application can significantly enhance system performance and reduce operational costs.

Circulating water scale inhibitors are used across various industries to manage and prevent scale buildup, ensuring efficient operation and longevity of systems. Here are key application fields:

1. Cooling Towers

Purpose: Prevents scale formation on heat exchange surfaces, which can reduce heat transfer efficiency and increase energy consumption.

Benefit: Enhances cooling efficiency and reduces maintenance needs.

2. Boilers

Purpose: Controls scale accumulation on heating surfaces, which can lead to reduced heat transfer and potential overheating.

Benefit: Increases boiler efficiency, reduces fuel consumption, and extends equipment life.

3. Industrial Processes

Purpose: Used in various manufacturing and processing applications where water is heated or evaporated, and scale could impair performance.

Benefit: Maintains process efficiency and prevents equipment fouling.

4. HVAC Systems

Purpose: Prevents scale in heating and cooling systems, ensuring effective temperature regulation and system reliability.

Benefit: Improves system efficiency and reduces operational costs.

5. Desalination Plants

Purpose: Prevents scale formation in reverse osmosis and other desalination processes, which can block membranes and reduce water production.

Benefit: Enhances membrane performance and extends service life.

6. Water Treatment Facilities

Purpose: Manages scale in various water treatment processes to prevent fouling and maintain equipment efficiency.

Benefit: Ensures consistent water quality and system performance.

7. Pulp and Paper Industry

Purpose: Controls scale in water used for pulping and paper production processes.

Benefit: Improves process efficiency and reduces maintenance.

8. Oil and Gas Industry

Purpose: Prevents scale formation in water used in extraction, processing, and transportation of oil and gas.

Benefit: Protects equipment and ensures operational efficiency.

9. Food and Beverage Industry

Purpose: Manages scale in water used for cleaning, heating, and processing food and beverages.

Benefit: Maintains equipment hygiene and process efficiency.

10. Power Plants

Purpose: Controls scale in cooling and steam generation systems.

Benefit: Enhances power generation efficiency and reduces maintenance costs.

In each application, scale inhibitors help maintain operational efficiency, reduce maintenance requirements, and extend the life of equipment. The choice of inhibitor depends on the specific water chemistry and operational needs of the system.

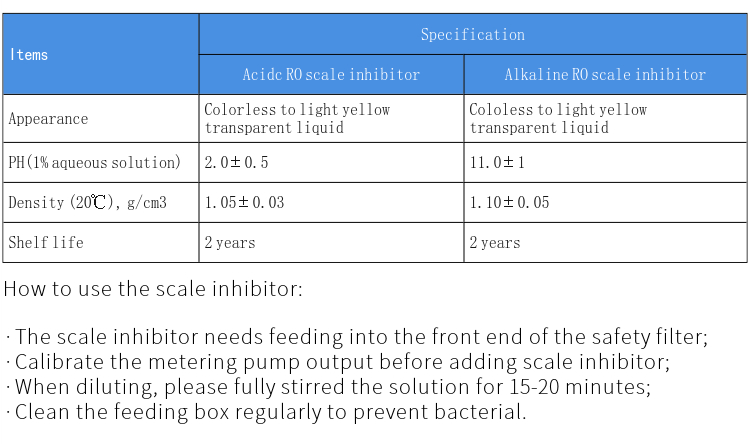

Using circulating water scale inhibitors involves several critical methods and steps to ensure effective prevention of scale buildup. Here’s a detailed guide on how to use these inhibitors:

Methods for Using Circulating Water Scale Inhibitors

1. Chemical Feed System

Description: Involves using a dosing pump or metering pump to introduce the inhibitor into the circulating water system.

Advantages: Provides precise control over the amount of inhibitor added.

2. Manual Addition

Description: Inhibitor is manually added to the water system at specified intervals.

Advantages: Simple to implement but requires careful monitoring and may be less consistent.

3. Blending in Storage Tanks

Description: Inhibitor is added to water storage tanks or reservoirs before the water is circulated through the system.

Advantages: Ensures initial treatment of water before it enters the main system.

Steps for Using Circulating Water Scale Inhibitors

1. Assess System Needs

Evaluate Water Chemistry: Test the water for hardness, pH, temperature, and other relevant parameters.

Identify Scaling Issues: Determine the types of scale likely to form and their impact on the system.

2. Select the Appropriate Inhibitor

Choose Based on Chemistry: Select an inhibitor that is compatible with the water chemistry and scaling types identified. Options include phosphates, polyphosphates, organic acids, chelating agents, synthetic polymers, or blends.

Consider Environmental Impact: Choose inhibitors that align with environmental regulations and sustainability goals.

3. Calculate Dosage

Refer to Manufacturer Guidelines: Follow dosage recommendations provided by the inhibitor manufacturer.

Adjust for System Size: Calculate the required dosage based on the flow rate, volume of the system, and concentration of scale-forming minerals.

4. Prepare the Inhibitor

Dilute if Necessary: Some inhibitors need to be diluted before application. Follow the manufacturer’s instructions for dilution ratios.

Mix Thoroughly: Ensure that the inhibitor is well-mixed if diluting or blending with other chemicals.

5. Introduce the Inhibitor

Chemical Feed System: Set up and calibrate a dosing pump or metering system to continuously add the inhibitor at the calculated dosage.

Manual Addition: For manual systems, add the inhibitor directly to the circulating water at the specified intervals.

Blending: If using storage tanks, add the inhibitor to the tank and allow it to mix thoroughly before circulation.

6. Ensure Proper Mixing

Monitor Distribution: Verify that the inhibitor is evenly distributed throughout the water system. Inadequate mixing can lead to uneven treatment.

Adjust Flow Rates: Ensure that water flow rates support proper mixing and distribution of the inhibitor.

7. Monitor and Maintain

Regular Testing: Continuously test water for hardness, pH, and inhibitor concentration to ensure effective scale control.

Inspect Equipment: Regularly check for scale buildup and system performance. Adjust dosage or type of inhibitor if needed.

Maintain Dosing System: Keep dosing pumps and related equipment clean and functioning properly to ensure consistent inhibitor delivery.

8. Adjust as Needed

Review Performance: Evaluate the effectiveness of the inhibitor in controlling scale and maintaining system efficiency.

Modify Dosage: Adjust the dosage or type of inhibitor based on performance data and changing water conditions.

Update Procedures: Revise usage protocols as needed to address any changes in system requirements or water chemistry.

By following these methods and steps, you can effectively manage scale formation in circulating water systems, ensuring operational efficiency and extending the life of your equipment.
